Description
The indutrial guns in the Granit XP range increase capacity and offer ultra-robust reading.
There are 2 models in the Granit XP range:
- Granit XP 1990iXR

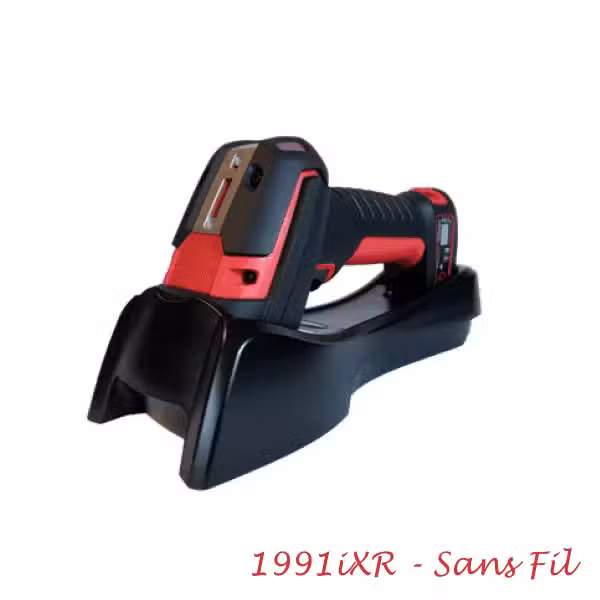

- Granit XP 1991iXR: wireless reader
Robust :
Granit XP 2D guns are ideally designed to withstand drops in demanding environments:
- 3 m falls
- 7,000 falls from a height of 1 m,
- operating temperatures between -30 °C and 50 °C
- IP67 watertightness
High-performance:
They incorporate Honeywell’s next-generation imaging platform, which enables a high level of reader performance to be maintained even in the event of damaged and/or poor-quality codes.
High-quality barcodes can be read and transmitted very quickly.
Versatile:
Ideal for reading 1D and 2D barcodes in the near field. They are also designed for extended range reading of UPC codes up to 1.5 metres and 100 mils codes up to 10 metres away.
Productive :
Honeywell’s functional intelligence software provides on-demand reading information, improving the productivity and performance of your workforce.
Honeywell’s Scanner Management Utility (SMU) creates a holistic solution that automates the deployment and updating of scanners in your environment.
COMMON FEATURES
- MECHANICAL CHARACTERISTICS
Dimensions (L × W × H): 192 mm x 76 mm x 100 mm
User indicators: successful decoding LEDs, audible signal (adjustable tone and volume), vibration (adjustable)
- ELECTRICAL CHARACTERISTICS
Input voltage: 4 to 5.5 VDC
°Input voltage: 4 to 5.5 Vdc °Host system interfaces: USB, keyboard connection (Wedge), RS-232 TTL
- ENVIRONMENTAL CHARACTERISTICS
Storage temperature: -40 to 70 °C
Humidity: max. 95% relative humidity, non-condensing
Drop resistance: 2 m: 50 drops from -30 to 50 °C, uncontrolled relative humidity
2.4 m: 20 drops at 25°C, 55% relative humidity
3 m: MIL-STD-810G, 25°C, 55% relative humidity
Rollover falls: 7,000 falls of 1 m
Tightness: IP67 and IP65
Brightness: 0 to 100,000 lux
Voltage peaks: ±20 kV air discharge, ±8 kV contact discharge
- READING PERFORMANCE
Read mode: raster image (1280 x 800 pixels)
Movement tolerance: up to 4,500 mm/s
Sweep angle: horizontal: 40°, vertical: 30
°Cprint contrast: 20% minimum reflection difference
Rolling / leading / tilting angle: -360°, 45°, 65°.
Decoding functions: reads 1D, PDF, 2D, postal, Digimarc, Dot Code and standard OCR symbologies
Warranty – Player: three-year factory warranty
Warranty – Battery: one-year factory warranty
| Minimum width |
Extended scope |
| 5 mils Code 39 |
20 to 220 mm |
| 10,4 mil C128 |
3 to 343 mm |
| 13 mil UPC |
0 to 1520 mm |
| 15 mil C128 |
0 to 1727 mm |
| 20 mil Code 39 |
0 to 2 236 mm |
| 6,7 mil PDF 417 |
20 to 209 mm |
| 10 mil Data Matrix |
30 to 220 mm |
| 20 mil QR Code |
0 to 484 mm |
| 22 mil QR Code |
0 to 1 671 mm |
| 70 mil C128 |
136 to 7 240 mm |
| Min. resolution 1D Code 39 |
3 mil (0,076 mm) |
| Min. resolution 2D Data Matrix |
6 mil (0,152 mm) |
| 100 mil Code 39 |
10 m |
*With industrial cable, sold separately.
**Performance may vary depending on the
quality of the barcode and the ambient conditions.
