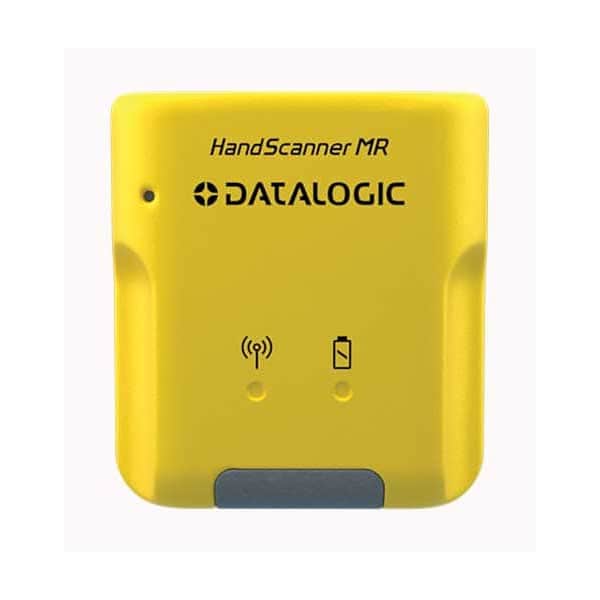

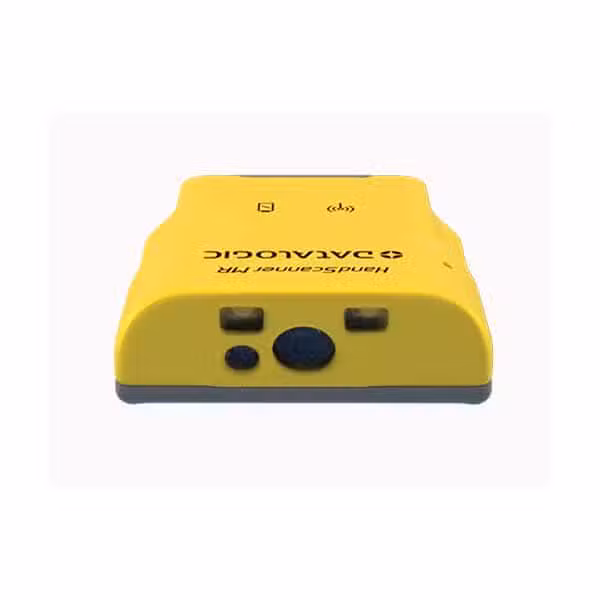

Handscanner

The ergonomic design of this scanner makes it easy to read 1D and 2D codes accurately. The HandScanner accompanies you for 15 consecutive hours and 10,000 scans. Its 2-position charging station means you can recharge it in just 2 hours.

This portable terminal has been designed to adapt to your needs. In its “Standard range” version it can read between 10 and 80 cm. For a wider reading range, opt for the “Mid-range” version, capable of reading between 30 and 150 cm. The mid-range version will therefore be better suited to warehouses, production plants and loading and storage areas.

This scanner will be perfectly suited to point-of-sale (replenishment, inventory, etc.), transport and logistics (order preparation, packing, sorting, etc.), manufacturing (traceability of parts, stock management, checking, etc.) and health (monitoring of samples, inventory, etc.).

To complete the performance of this hands-free reader, you can combine it with the same brand of portable and vehicle-mounted terminals to improve data collection and offer your staff a complete solution.

PHYSICAL CHARACTERISTICS

• Dimensions: 50 x 45 x 16 mm / 1.9 x 1.7 x 0.6 inches
• Weight: 40 g / 1.4 oz

WIRELESS COMMUNICATIONS

• Bluetooth wireless technology
• Supports Bluetooth Low Energy 4.0, 4.1, 4.2, 5.0
• Transmission range: Free field: 40 m / 131 ft **;
• Indoors: 10-20 m (33-66 ft.) ** Indoor: 10-20 m (33-66 ft.)
• Footbridge: Free field: 70 m (230 ft) **
• Indoors: 30-40 m (100-130 ft.) ** Indoor: 100-130 ft.

** May decrease in industrial environments due to walls, metal shelving, machinery, etc.

DECODING CAPABILITY

• 1D / linear codes: automatically detects all standard 1D codes, including GS1 DataBar ™ linear codes.
• 2D Codes: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR
• Code, Aztec, MaxiCode
• Postcodes: US PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal (KIX)

ELECTRIC

• Battery: 670 mAh, lithium polymer (rechargeable)
• Charging time: 2 hours with Datalogic charging station
• Uptime / scans: up to 10,000 scans depending on application and environmental conditions
• Power supply charging station: 5 VDC (1.2 A) via power supply

ENVIRONMENTAL

• Drop resistance: withstands repeated drops from 2 m / 6.5 ft onto concrete
• Falls: 2000 to 0.5 m / 1.6 ft
• Shock resistance: IEC60068-2-75, IK06 (1J)
• Particle- and water-tight: dust- and water-resistant
• Operating temperature: 0 to 50°C / 32 to 122°F
• Charging temperature: 5 to 40°C / 41 to 104°F
• Storage temperature: -20 to 60°C / -4 to 140°F

INTERFACES

• Interfaces: Bluetooth: HID profiles
• Android: HID, application / SDK
• IOS: HID, iOS SDK
• USB: Datalogic gateway, USB HID (keyboard input on host), USB CDC (virtual com port)

READING PERFORMANCE

• Optical resolution: 1280 x 960 pixels
• Reading field of vision: Standard range: Horizontal: 48°, Vertical: 36.7°.
• Mid-range: horizontal 31°, vertical 23
• Playback angle: Pitch: +/- 60 °; Roll (tilt): 360 °; Tilt (yaw): +/- 60 °.
• Ambient light: 0 – 96900 lux
• Love: 650 nm, 1 mW

READING RANGE

Scanning range: minimum distance determined by symbol length, scanning angle and environmental conditions. The smallest bar code symbol (the number in millimetres (mm) indicates the size of the smallest bar code function); Possible distance between the user and the bar code

Standard range:

• Code 39: 3 mils: 7.1 to 15.8 cm / 2.8 to 6.2 inches
• Code 128: 5 mils: 5.8 to 22.1 cm / 2.3 to 8.7 inches
• PDF417: 5 mils: 7.6 to 20.6 cm / 3.0 to 8.1 inches
• DataMatrix: 10 mils: 6.1 to 26.9 cm / 2.4 to 10.6 inches
• 100% UPCA: 4.1 to 58.4 cm / 1.6 to 23.0 inches
• Code 39:20 mils: 4.1 to 92.2 cm / 1.6 to 36.3 inches

Mid-range:

• Code 128: 0.127 mm / 5 mil: 18.8 to 40.6 cm / 7.4 to 16.0 inches
• PDF417: 0.127 mm / 5 mil: 20.6 to 33.3 cm / 8.1 to 13.1 inches
• DataMatrix: 0.254 mm / 10 mil: 17.8 to 43.2 cm / 7.0 to 17.0 inches
• 100% UPCA: 5.8 to 96.5 cm / 2.3 to 38.0 inches
• Code 39: 0.508 mm / 20 mil: 5.3 to 137.2 cm / 2.1 to 54.0 inches
• Code 39: 2.54 mm / 100 mil: 27.9 to 436.9 cm / 11.0 to 172.0 inches

UTILITIES AND ACCESSORIES

• Device configuration and management tools: for configuring barcodes, the interface, devices and profiles, device management, etc.
• Gateway integration: Datalogic gateway: hardware connector to activate all scanner capabilities via USB interface.
• Android Integration ™: Mobile App: provides full integration for Android enterprise apps.
• Triggering: the scanner can only be triggered using the Datalogic manual trigger. Available in sizes S, M, L. Right- and left-handed versions.
• Recommended pair of devices: Datalogic Memor ™ 1, Memor ™ 10, Memor ™ 20, Skorpio ™ / Falcon ™ (Android), Taskbook, Rhino II ™ – see manual for interface details
