Product brands : FEIG ELECTRONIC
Download the documentation

ID ISC.MU02.02

Description

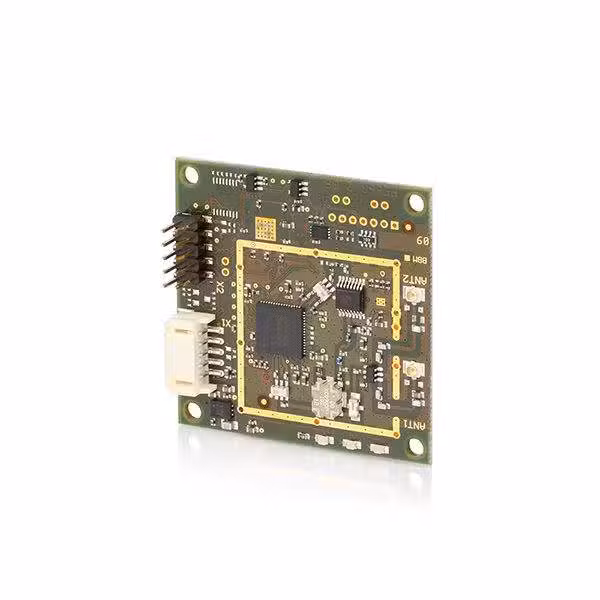

This short-range UHF reader module consists of a small, simple PCB and impresses with its excellent performance. Its integrated multiplexer with two antenna outputs means it can be used for a wide variety of applications. Output power is configurable with different power supply modes.

  • Dimensions : 50 x 50 x 14 mm
  • Frequency: 860-928 MHz
  • Integrated multiplexer
  • 2 antenna outputs: U.FL (Hirose), MMCX available on request
  • 4 different interfaces: RS232-V24, Data Clock, RS232-LVTTL, USB 2.0
  • Low energy consumption: max. 2 W
  • Transponder support: EPC Class 1 Gen 2
  • Optical indicators: 3 LEDs (red / green / blue)
  • Operating temperature: -25 °C to +55 °C
