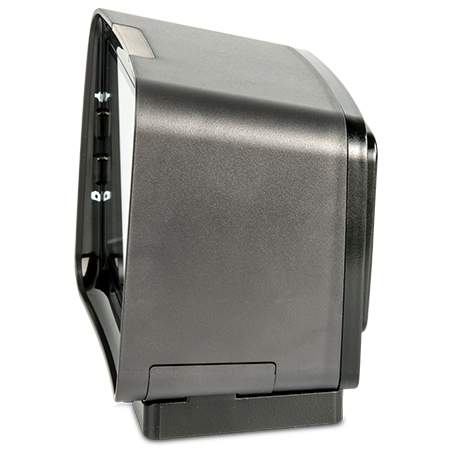

MAGELLAN 3450 VSi

Description

The many features that make the Magellan range so successful are brought together in the Magellan ™ 3450VSi, with 1D and 2D barcode reading, no moving parts, image capture, compact size and simple service access for software updates or configuration changes. These readers also benefit from the advances in imaging, lighting, processors and software that Datalogic has brought to the bi-optics market with the Magellan 9800i and 9400i.

Enhancements to the entire reader and software enable a significant reduction in illumination brightness, while improving throughput, depth of field and reading speed. Soft, unobtrusive lighting reduces both direct and reflected light visible to users. This guarantees a pleasant working environment and high productivity all day long. The Magellan 3450VSi reader also features a large, intuitive reading zone, making scanning more comfortable and efficient.

  • Technical specifications
  • CAPACITES DE DECODAGE
    CODES LINEAIRES / 1D  Lit tous les codes 1D standards dont les codes linéaires GS1 DataBar™.
    CODES 2D  Aztec Code; Data Matrix (ECC200 seulement); MaxiCode; QR Code
    STACKED CODES  GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417
    DIGITAL WATERMARKS  Support optionnel pour lecture des codes-barres Digimarc® Barcode/GS1 DW Code

    PERFORMANCE DE LECTURE
    CAPTURE D’IMAGE  Formats d’Images : BMP, JPEG
    IMAGER SENSOR  1280 x 1024
    SOURCE LUMINEUSE  Diffusé Multiple LEDs, orientation et longueur d’onde optimisées pour le confort des yeux
    CONTRASTE D’IMPRESSION (MINIMUM)  25%
    HAUTEUR DE LECTURE  14,0 cm / 5,5 in
    TAUX DE LECTURE (MAXIMUM)  39 Million de pixels par seconde
    ANGLE DE LECTURE  Pitch : +/- 65°; Roll (Tilt) : 0 – 360°;  Skew (Yaw) : +/- 75°
    INDICATEURS DE LECTURE  Haut-parleur Audio avec tonalité et volume ajustables, prend en charge les fichiers .wav; LED de Bonne Lecture; Transmission Effectuée
    RESOLUTION (MAXIMUM)  5 mil
