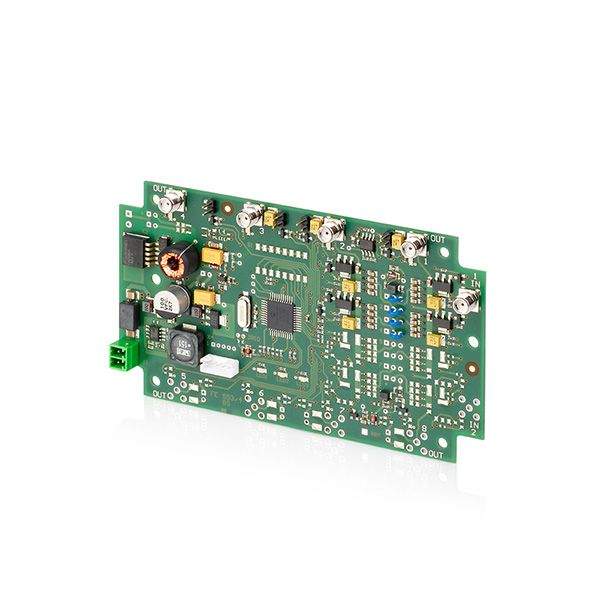

MUX.M4 4 antenna multiplexer

Description

This 4-antenna multiplexer makes it easy to switch between RFID antennas at a frequency of 13.56 MHz. It is controlled via the aerial cable connected to the player, so no additional connection to the multiplexer is required, ensuring easy installation.

  • Dimensions : 137 mm x 77 mm x 15 mm, poids environ 80 g
  • Frequency: 13.56 MHz
  • Supply voltage: 12-24 V DC
  • Energy consumption: max; 4.0 W
  • Attenuation per channel: max; 0,5 dB
  • Max power permissible switching power: 8 W
  • RF connections: 1 x SMA jack input, 2 x SMA jack outputs
  • RF switches: electronic switches (non-bearing), switching speed <1ms
  • Trigger reader: communication via RF input 1
  • Operating temperature: from _25 °C to +65 °C
  • Storage temperature: -40 °C to +80 °C
