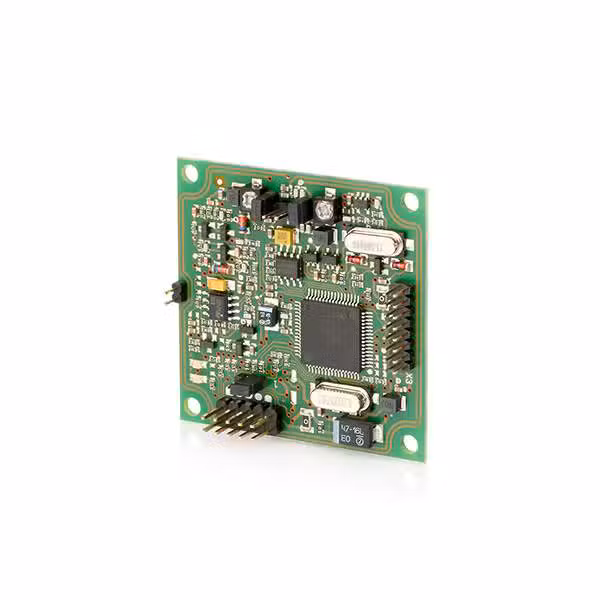

OEM M02-B reader

Description

This multi-tag reader works with a built-in or external antenna, and is suitable for applications in the access control sector thanks to its data/clock interface.

  • Dimensions: width 50 mm, height 50 mm, depth 15 mm
  • Connector: 10 pins, 2.54 mm spacing
  • Frequency: 13.56 MHz
  • Supply voltage: 5V DC + 5%.
  • Transmission power: 90 mW +/- 2dB
  • Power consumption: maximum 1 W
  • Compliance: ISO 15693
  • Antenna: built-in (48 mm x 48 mm), optional external antennas 50Ω
  • Interfaces: RS232-TTL, Dta / Clock (magnetic card emulation and Wiegand emulation)
  • Operating temperature: -20 °C to +70 °CDimensions: 38 x 13 x 4.5 mm
  • Storage temperature: -40 °C to +85 °C
  • Memory: EEPROM 1 kB (10,000 write cycles), FLASH 64 kB (software update via interface possible)
