Product brands : OMNI-ID
Download the documentation

Omni ID Flex 1600

Description

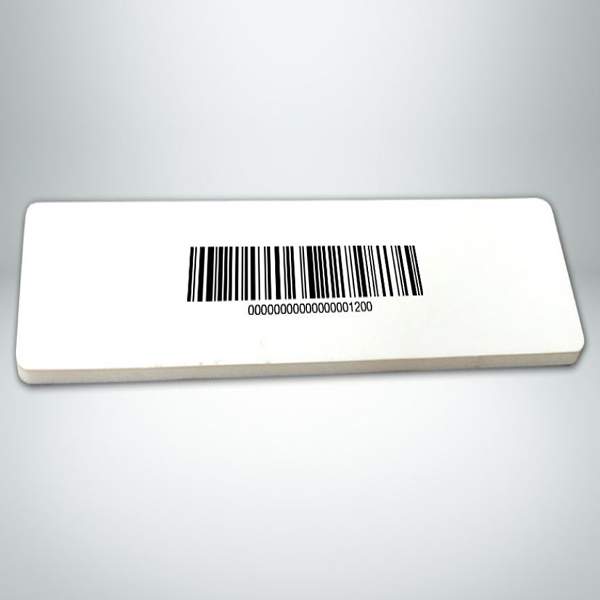

Omni-ID Flex 1600 is a low-profile, cost-effective RFID tag with superior RF performance. Supplied with a laminated overlay surface for enhanced durability, Flex 1600 is designed specifically as a lower-cost alternative to hard tags for applications requiring overlay protection. What’s more, it has a reading range of up to 16 meters.

Request a quote
  • Technical specifications
  • ELECTRICAL:
    Air Interface Protocol:
    EPC Class 1 Gen 2v2 (ISO 18000-6C)
    Operating Frequency: FCC (902-928 MHz), ETSI (866-868 MHz)
    IC Type: Impinj Monza R6-P
    Memory: EPC 128/96 Bits, User 32/64 Bits, TID 48 Bits
    EPC Memory Content: Unique, auto-serialized
    Max Read Distance (Fixed Reader): Up to 16 m (52.49 ft) – On metal, Up to 8 m (26.3 ft) – Off metal
    Max Read Distance (Handheld Reader): Up to 8 m (26.3 ft) – On metal, Up to 4 m (13.1 ft) – Off metal
    Applicable Surface Materials: Optimized for metal
    MECHANICAL:
    Tag Form Factor: Label tag
    Tag Materials: White synthetic label with transparent over laminate
    Attachment Method: Film adhesive
    Dimensions: 95 x 25 x 3.8 mm (3.74 x 0.98 x 0.15 in)
    Weight: 2.7 g
    ENVIRONMENT:
    Operating Temperature: -40° to +85°C (-40° to 185°F)
