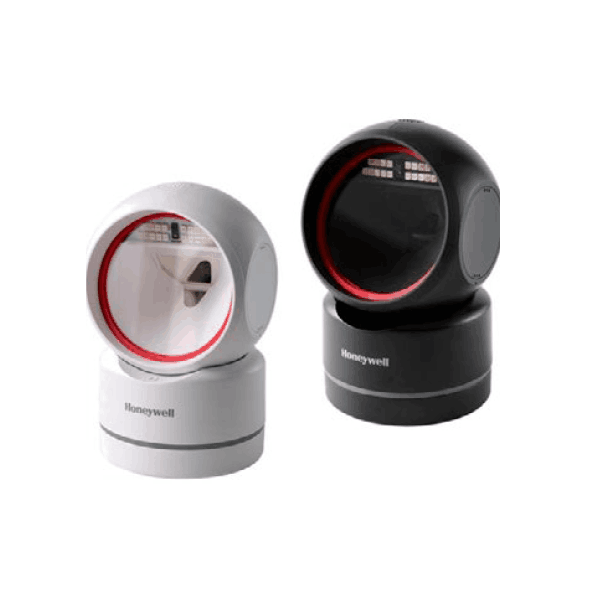

ORBIT HF680

Description

With its tilting reading head, the ORBIT HF680 reader will enable you to read a variety of products of different shapes and sizes more quickly and easily. This hands-free reader offers optimum 1D and 2D code reading, even on damaged codes. The user experience is optimised thanks to its reading speed and discreet light that goes out when the reader is inactive.

READING PERFORMANCE

  • PPP : 1 280 × 800 pixels
  • Motion tolerance: up to 2.5 m/s for 13 mil UPC codes at optimum focal distance
  • Scanning angle: horizontal: 47°; vertical: 30°.
  • Print contrast: 20% minimum reflection difference
  • Angle of attack/tilt: +/-60°, +/-70°.
  • Decoding: reads standard 1D, PDF and 2D symbologies
  • Note: decoding functions depend on kit configuration.
  • Warranty: 3-year factory warranty
Request a quote
  • PHYSICAL CHARACTERISTICS
  • ELECTRICAL CHARACTERISTICS
  • ENVIRONMENTAL CHARACTERISTICS
    • Dimensions (L × W × H): 85 mm × 88 mm × 139 mm
    • Weight : 278 +/- 10 g
    • Input voltage: 5 Vdc ±0.5 V
    • Operation: 2 W (400 mA at 5 V)
    • Standby: 0.85 W (170 mA at 5 V)
    • Host interface: USB, RS-232
    • Operating temperature: -10 to 40°C
    • Storage temperature: -40 to 60 °C
    • Humidity: 0 to 95% relative humidity, non-condensing
    • Drop resistance: designed to withstand falls from a height of 1 m
    • Illuminance: 0 to 100,000 lux
