P-Series

Description

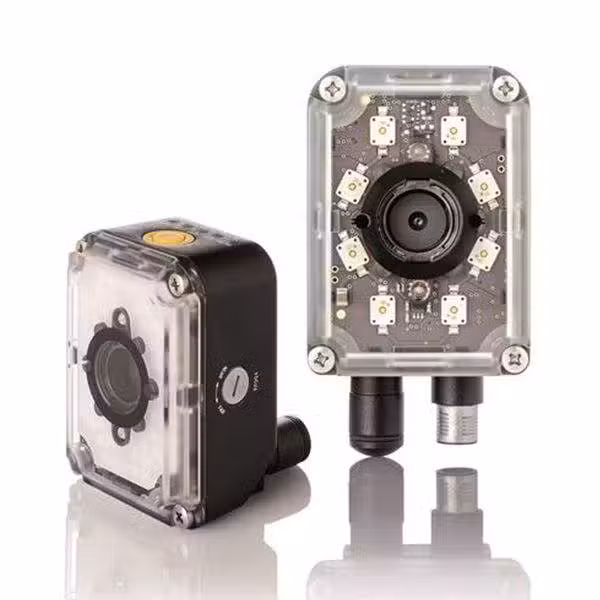

The P-Series is an ultra-compact, cost-effective smart camera offering the capabilities of an advanced vision system in a fully self-contained device; It is available with a greyscale or colour CMOS sensor with two different resolutions: VGA and 1.3 MP; The lenses and lighting are completely interchangeable and can be fitted and replaced by the operator; Five focal lengths and nine lighting options form up to 90 possible combinations, delivering extreme installation flexibility with superior acquisition capabilities;

  • Technical specifications
    • Dimensions :
      • Connecteur @ 0° : 95 mm x 54 mm x 43 mm
      • Conencteur @ 90° : 75 mm x 54 mm x 62 mm
    • Etanchéité : IP97
    • Températures :
      • De fonctionnement : de 0 °C à +50 °C
      • De stockage : de -10 °C à +70 °C
    • Résolution :
      • P10 : VGA (640 x 480 pixels)
      • P15 : SXGA (1280 x 1024 pixels)
    • Lentilles : 6 mm / 9 mm / 12 mm / 16 mm / 25 mm
    • Eclairages :
      • Grand Angle 8 LEDs : rouge, blanc, IR, bleu
      • Multi-chaînes 50 LEDs : rouge, blanc, bleu
    • Processeur : 660 MHz DSP
