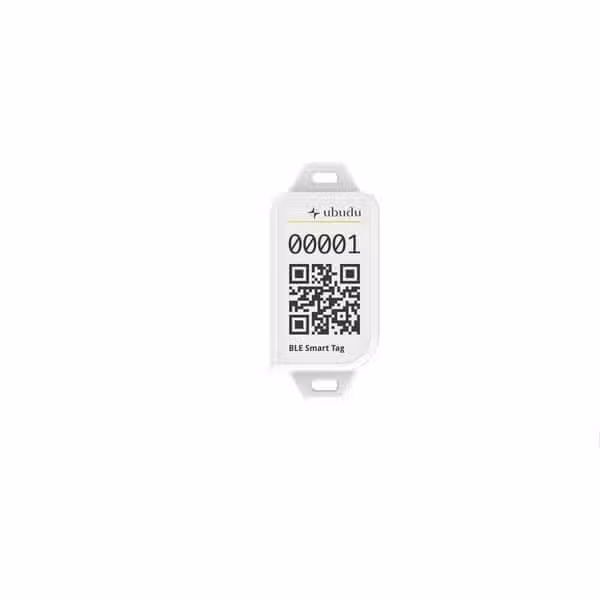

SMART BEACON – BLE
This BLE smart beacon is a small, portable device that locates its wearer. It uses BLE technology for very low power consumption, guaranteeing a lifespan of around 46 months. It emits a vibration and lights up an LED in situations that you have previously configured. IP54 up to IP67 as an option. Example of use: Help your staff to stay safe by letting them know in real time that there is a risk of contamination when they are too close to each other, thanks to a stand-alone device that generates an alert by vibration and LED light. The alert distance is configurable (1-3.5m). This beacon measures 100 x 46 x 22.3 mm. See similar beacons in different sizes:
- SMART BEACON – BLUE – MIDI / Dimensions : 65 x 45 x 17,5 mm
- SMART BEACON MINI – BLUE / Dimension de 45 x 45 x 17,5 mm
Également dans la gamme BLE :
- BEACON – BLE / Battery-powered beacon installed in a fixed location that broadcasts a Bluetooth Low Energy signal every 800 milliseconds to nearby tags.
- NETWORK GATEWAY – DONGLE BLE / The network gateway has 7 USB ports for receiving data from BLE dongles and sending them back to the server via the network.
If you’re looking for a more precise reading experience Turn to our products Ultra Large Bande (UWB)
- Technical specifications
-
• Compatible avec les configurations Ubudu BLE V1 (liaison montante) et V2 (liaison descendante)
• Dimensions 100 x 46 x 22,3 mm
• Micrologiciel évolutif
• poids de 66 g
• Accéléromètre intégré
• IP54 prêt pour les zones industrielles
• IP67 en option
• Indicateur visuel LED
• Températures de fonctionnement
• Facteur de forme amovible
• -30°C ÷ 60°C (pièce)
• Autonomie de plus de 46 mois, selon le scénario
• Conçu et fabriqué dans l’UE
• -10 °C ÷ 40 °C (LiPo)
• Alimenté par des piles bouton remplaçables (2 x 1 000 mAh)
• Chaque unité soigneusement testée
• 1 an de garantie
• Certifié CE
• -20 °C ÷ 45 °C (Lipo en option)
• Alimenté par une batterie de 2 000 mAh rechargeable via USB-C (en option)
• Disponible en blanc et gris
