Description

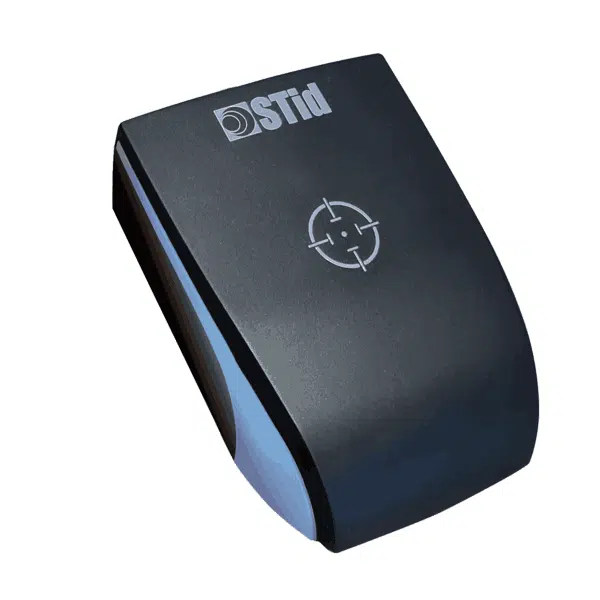

Simplify your RFID tag and label encoding operations with the ARC UHF tabletop reader. It enables contactless identification over short distances.
Its integrated, circular, high-performance antenna ensures optimum reliability and accuracy, even for the smallest passive UHF tags.
Equipped with a buzzer and LEDs, it simplifies interaction with the user and boosts productivity.
The ARC UHF player is connected and self-powered via the USB interface. This makes it easy to integrate and adapt to all types of office, industrial and logistics environment.
With IK10 and IP53 certification, it is the most robust UHF tabletop reader in its category.
Made in France.
Carrier frequencies / Standards
UHF – ETSI versions: 866 MHz (Europe), FCC Part 15: 915 MHz (USA), Morocco (decision n°ANRT/DG/n°7-10), Australia and New Zealand
Air interface protocol & functions
EPC1 Gen 2 / ISO18000-63 – Untraceable – Block Permalock – ATA SPEC 2000 compatibility
Modes
Piloted (read/write)
Antenna
Integrated circular antenna
Reading performance(1)
Reading up to 40 cm(1) – Encoding up to 25 cm(1)
Up to 14 dBm(1)
Anti-collision system
Yes
Indicator light and sound
2 RGB LEDs – 360 colours
Built-in buzzer can be activated/deactivated – 3 sound levels
Indicators can be controlled by SSCP® commands or SESPRO UHF software
Interfaces & communication protocol
USB 2 – USB 3
SSCP® communication protocol + USB WEDGE (keyboard emulation)
Power supply & connectors
Moulded USB A cable 1.5m
Materials
ABS-PC UL-V0 (black)
Dimensions (h x w x d) / Weight
107 x 80 x 26 mm (general tolerance to ISO NFT 58-000 standard)
Operating temperatures
– 20°C to + 55°C
Protection / Resistance
Eq. IP53 – Humidity: 5% – 95
IK10-certified shock- and vandal-resistant structure
Installation
Non-slip loose fitting
