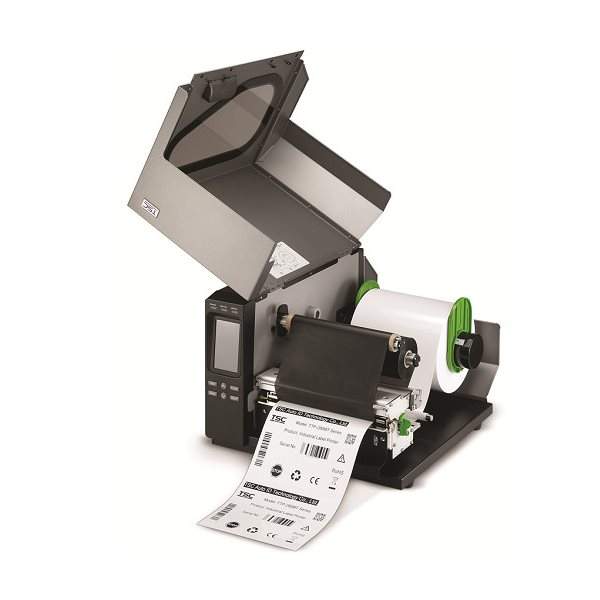

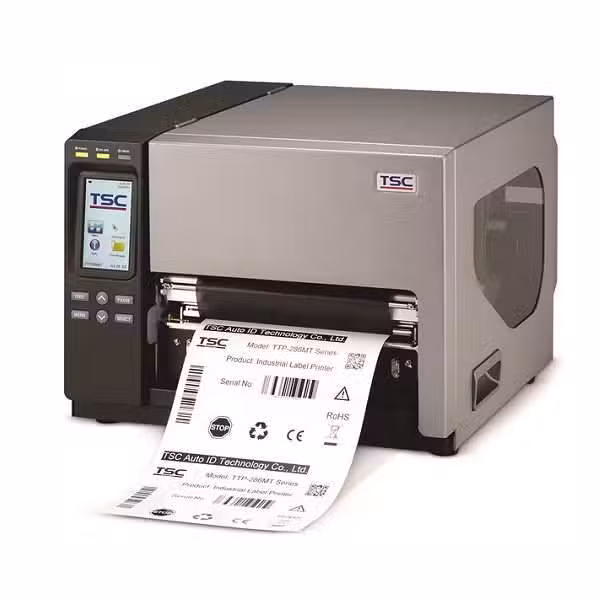

TTP 286MT

Description

The TTP-286MT series of large-format thermal transfer printers is affordable, easy to use and ideal for compliance labelling, brand marketing, stock control, container labelling, warning labels and a host of other display solutions; The TTP-286MT series offers two models to meet your large-format labelling needs:

TTP-286MT – 203 dpi resolution, 8.5″ print width,
printing speed of 152 mm (6″)/second;
TTP-384MT – 300 dpi resolution, 8.64″ print width,
printing speed of 102 mm (4″)/second;
The TTP-286MT series can accommodate very large labels up to 9.5 inches, offering a maximum print width of up to 8.64 inches at 300 dpi resolution and up to 8.5 inches at 203 dpi resolution; It is also designed to print large barcodes sideways, without the need to rotate the image;

Higher level of performance, colour touchscreen
The TTP-286MT series has a new, faster processor and all the memory customers will need to print high-quality labels at very high speeds.

High-speed performance, extended memory
The TTP-286MT series offers an extended memory capacity of 512 MB of Flash memory and 256 MB of SDRAM; An internal Ethernet interface, a USB 2.0 and USB host interface, a parallel port and a serial port are supplied as standard.

  • KEY FEATURES
    • 4.3" LCD touch screen with 6 function keys;
    • An Ethernet connection and USB 2.0, serial and parallel interfaces are available as standard;
    • Reinforced chassis in cast aluminium, metal bonnet with opening window for media visibility
    • Handles label widths up to 241.3 mm (9.5") with a maximum print width of 219.5 mm (8.64") and high resolution of 300 dpi;
    • 256 MB SDRAM and 512 MB Flash memory;
    • Extension for SD flash memory card, up to 32 GB
    • Printing speeds of up to 6" per second for the 203 dpi version and 4" per second for the 300 dpi version;
    • Powerful programming tools
    • Options include: GPIO connectivity, Bluetooth module, cutting module
