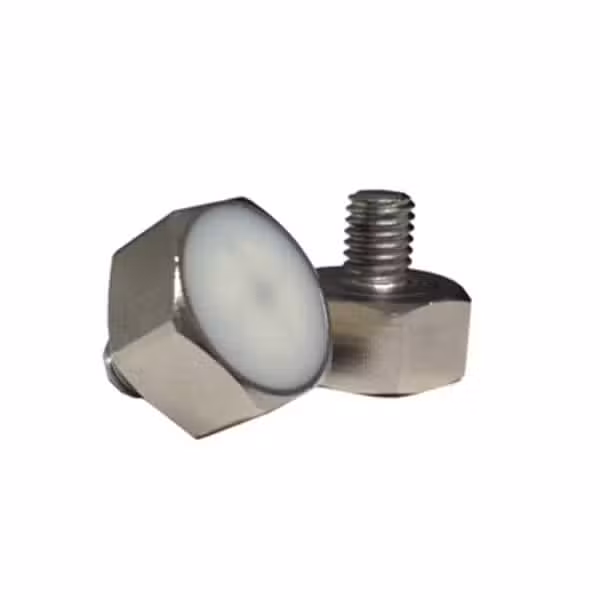

Ultra-Resistant X-BOLT

Description

The X-BOLT RFID tag offers high chemical resistance and 360° reading performance for manufacturing control applications. It features an X-shaped dual dipole antenna with circular polarization, enabling reliable reading from 2 meters at any angle. X-BOLT is built to last, using top-of-the-range materials in specially coated alloy steel and high-grade reinforced epoxy. Depending on your process, a label can be used for years.

  • High-quality materials: alloy steel with special coating, high-quality reinforced epoxy
  • Reading range: up to 2 metres, 360° reading
  • Dimensions: Ø 19 mm, size can be adapted to your needs
  • Operating temperature: -20 °C to +70 °CDimensions: 38 x 13 x 4.5 mm
  • Protection rating: IP68
  • Chemical resistance: no physical or performance changes for 168 hours exposure to salt water (10% salinity), NaOH (10%, pH 13), motor oil, 24 hours exposure to water-soluble metalworking fluids, cutting and grinding fluid, neutral industrial cleaner, 1 hour exposure to acetone
