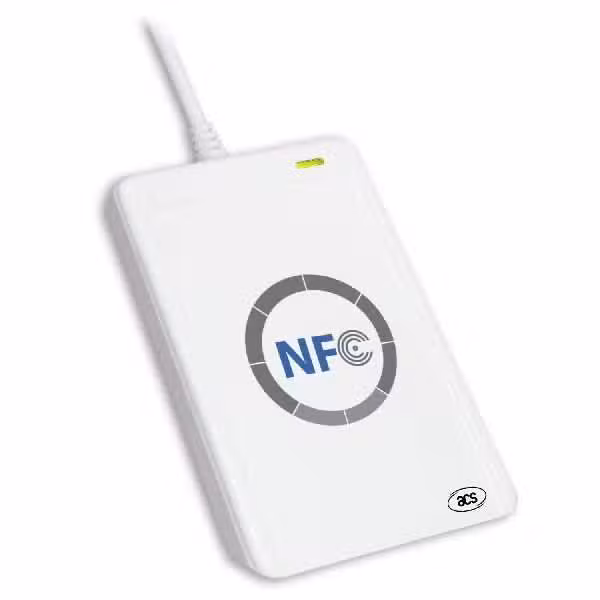

USB NFC encoder reader;

Description

This reader, linked to a PC, can read/record information on smart cards developed using 13.56 MHz contactless (RFID) technology; Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only MIFARE® and ISO 14443 A and B cards, but also all four types of NFC tag;

It is compatible with CCID and PC/SC; So it’s a plug-and-play USB device that allows interoperability with different peripherals and applications; With an access speed of up to 424 Kb/s and full USB speed of up to 12 Mb/s, it can also read and write faster and more efficiently; It has a proximity detection range of up to 5 cm, depending on the type of contactless label used;

To increase the level of security, it can be integrated with an ISO 7816-3 SAM slot; What’s more, this NFC reader is available as a module, enabling easy integration into larger machines such as POS terminals, physical access systems and vending machines.

This NFC reader is ideal for secure personal identity verification and online micropayment transactions. Other applications include access control, electronic payment, electronic ticketing for events and public transport, road toll collection and network authentication.

Other applications include access control, electronic payment, electronic ticketing for events and public transport, road toll collection and network authentication;

  • Technical specifications
  • Dimensions 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
    Weight 70.0 g
    Compliance / Certifications
    ISO 18092, ISO 14443, PC/SC, CCID, EN60950/ISO 60950, CE, FCC, MIC, KC, VCCI, RoHS 2, USB Full Speed, Microsoft® WHQL

    • Interface: USB Full Speed
    • Operating Distance:   Up to 50 mm (depends on the tag type)
    • Supply Voltage:   Regulated 5V DC
    • Supply Current :  200mA (operating); 50mA (standby); 100mA (normal)
    • Operating Temperature:   0-60 °C
    • Operating Frequency :   13.56 MHz



    Smart Card Interface Support

    • ISO14443 Type A & B
    • MIFARE
    • FeliCa
    • 4 types of NFC (ISO/IEC18092) tags



    Operating System Support

    • Windows®
    • Win CE 5.0 and 6.0
    • Linux®
    • Mac OS®
    • Android™ 3.1 and above
