Description

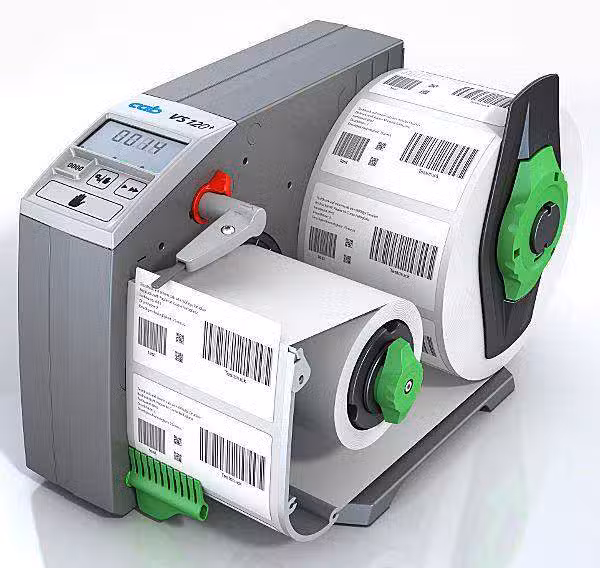

The VS label dispenser from CAB offers simple, accurate manual dispensing of labels;
It features precise label positioning with adjustable pre-peel speeds; The backing (label liner) of the full roll of labels rewinds simultaneously; The peeling of the label from the backing is independent of the feed speed; Thanks to its precise positioning, the label detection cell is designed to peel off very small labels; There are two versions to suit different uses: The VS version moves the label from bottom to top, and pre-peels it from its backing “head first”; The advantage of this is that you don’t have to turn the label;
Technical specifications
Direction of distribution: Vertical
Label orientation: Head forward
Labels on rolls, die-cut, optional as a folding screen
Materials Paper, textile, synthetic, even transparent
Feed speed up to (mm/s): 200
Roll of labels:
- Outside diameter up to (mm) 200
- Chuck diameter (mm) 38 – 76
- Max. weight (kg) 4
- Internal or external winding direction
Material support reel Outside diameter up to (mm) : 155
Detection: Front edge of label
Distance from front edge A (mm): 5 – 55
Debonding height B (mm): 4 – 18
On” display: green LED;
Error display: red LED
Socket: power supply
On/off switch;
Power supply: 100 – 240 V ~ 50/60 Hz
Max. operating/standby power 30 W / 5 W
Temperature / Humidity:
- Operating temperature: +5 – 40°C, / 10 – 85% non-condensing
- Storage: +0 – 60°C, / 20 – 80% non-condensing
- Transport: – 25 – 60°C, / 20 – 80% non-condensing
Niveau de bruit : < 60 dB
Safety standards: CE, FCC class A, ICES3
Specific appliance dimensions
VS 60
Label width with backing (mm): 8 – 65
Front label height (mm): 5 – 300
several face widths (mm): 5 – 110
Dimensions
- Height x depth without material (mm): 250 x 360
- Width (mm) 180
- Weight (kg) 3,3
VS 120
Label width with backing (mm): 20 – 120
Front label height (mm): 8 – 600
several face widths (mm): 8 – 110
Dimensions
- Height x depth without material (mm): 250 x 360
- Width (mm): 230
- Weight (kg) : 3,6
VS 180+
Label width with backing (mm): 80 – 180
Front label height (mm): 20 – 600
Multiple front label height (mm): 20 – 110
Dimensions
- Height x depth without material (mm): 250 x 360
- Width (mm): 300
- Weight (kg) : 4.0
