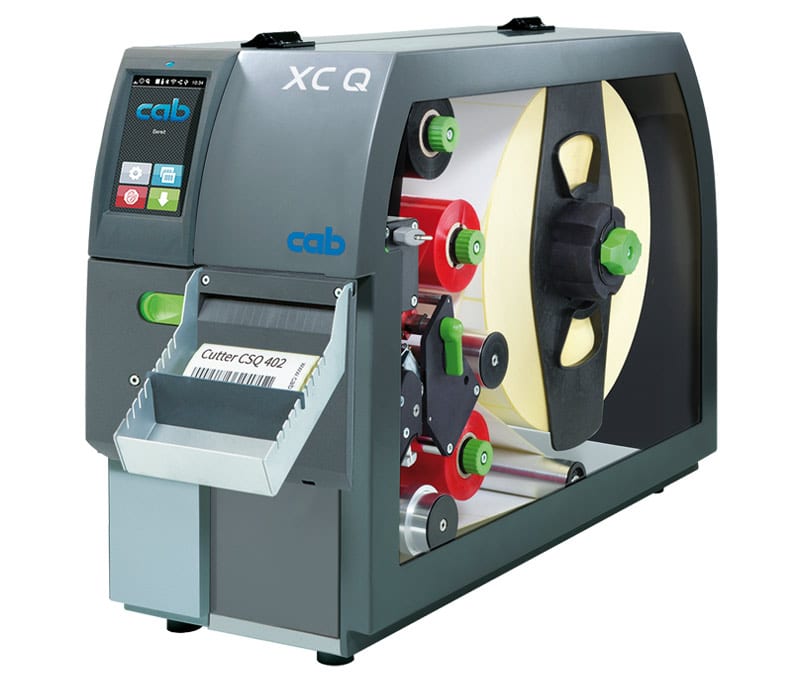

XCQ
The XCQ two-colour label printer, carefully designed in Germany, offers an innovative, high-performance solution for all your labelling needs. There are three models in this range:
- XC Q4 with tear-off edgeXC
- Q4-C2 with cutter
- CSQ402XC Q6.3 with tear-off edge
Main features:
Two-colour printing ‘Made in Germany’: The XCQ range offers two-colour printing for advanced label personalisation, with high quality German manufacturing.
300 dpi resolution and print widths up to 105.7 mm (XC Q4) and 162.6 mm (XC Q6.3): High resolution and various widths for precise, adaptable printing.
Integrated cutters (CSQ402 for XC Q4, CU600 for XC Q6.3): Precise cutters make it easier to cut printed labels, improving their usability.
Adjustable temperature per printhead: Fine temperature adjustment for optimum print quality depending on the substrate.
Printing with a single head raised and ribbon saver for head 1: Possibility of economical use of a single print head with less ribbon.
Continuous printing without retracting during cutting and optimised printing between jobs: Maintains printing during cutting and reduces dead time between jobs for greater efficiency.
- Two-colour printing
- Efficiency and economy
- Flexible print formats
- Technical specifications
-
- Thermal transfer material guidance
- Print speed up to 150 mm/s
- Material width up to 114 mm (XC Q4) and 180 mm (XC Q6.3)
- A variety of materials: paper, cardboard, synthetics, textile strips, etc.
- Dimensions: 248 x 395 x 554 mm (XC Q4) and 358 x 395 x 554 mm (XC Q6.3)
- Weight: 22 kg (XC Q4) and 24 kg (XC Q6.3)
- Interfaces : RS232, USB, Ethernet, E/S digitale
- 24 VDC power supply, power according to
