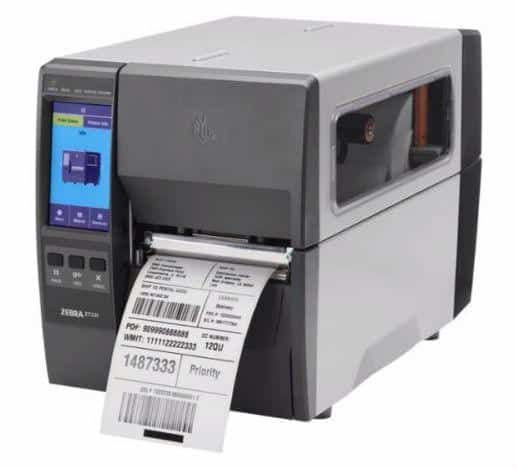

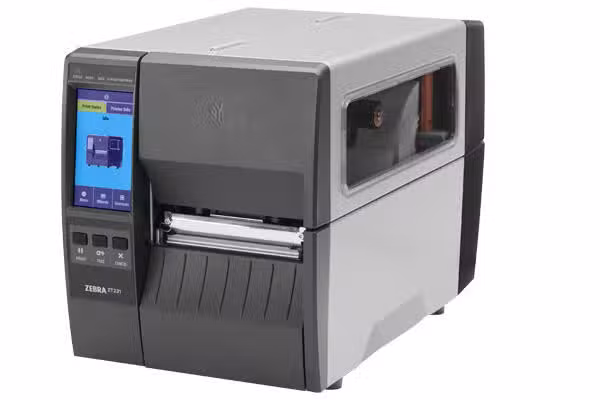

ZT200 Series
The ZT200 series includes 2 models: ZT231 (industrial), ZT231R (RFID)
Performance and durability: The ZT231 offers superior print quality and robust construction for intensive industrial use. It guarantees consistent, reliable performance for efficient operations.
User interface: The 4.3 pouces colour touchscreen simplifies management and reduces downtime thanks to easier maintenance.
Flexibility : Supports a wide range of materials and is compatible with popular emulations, allowing easy integration into existing systems.
Key Features:
– Printing methods: Direct thermal, thermal transfer (optional)
– Resolution: 203 dpi by default, 300 dpi (optional)
– Print width: 104 mm
– Printing speed: 152 mm/s
– Memory: 256 MB SDRAM, 256 MB Flash
Connectivity: USB 2.0, RS-232, Ethernet 10/100, USB Host
– Consumable compatibility: Width from 19.4 to 114 mm
– Dimensions: 432 x 241 x 279 mm
– Weight: 9.1 kg
- Durability: Robust printer for industrial environments.
- Maintenance: Easy access for replacement and servicing
- Easy to use: touch-sensitive interface and two-colour LEDs (for printer status)
- Cost: Economical, high-performance solution.
- Integration: Compatible with various systems.
- An economical, high-performance solution.
- Technical specifications
- Options and Accessories
-
– Printer type : Industrial thermal printer
– Technology : Direct thermal, thermal transfer
– Resolution: 203 dpi standard, 300 dpi optional
– Print speed: Up to 12 fps at 203 dpi
– Maximum width: 104 mm
– Size: 432 x 241 x 279 mm
– Weight: 9,1 kg
– Connectivity: USB 2.0, RS-232, Ethernet 10/100, USB Host
– Memory: 256 Mo SDRAM, 256 Mo Flash
– Consumables: Width: 19.4 to 114 mm
– Temperature: 5 to 40 °C
– Humidity: 20 to 85 -
Additional connectivity: Wi-Fi 802.11ac, secondary Ethernet port
Substrate processing: Guillotine paper cutter, passive gluing
Advanced technologies: UHF RFID kit
Software: Print DNA, PrintSecure
